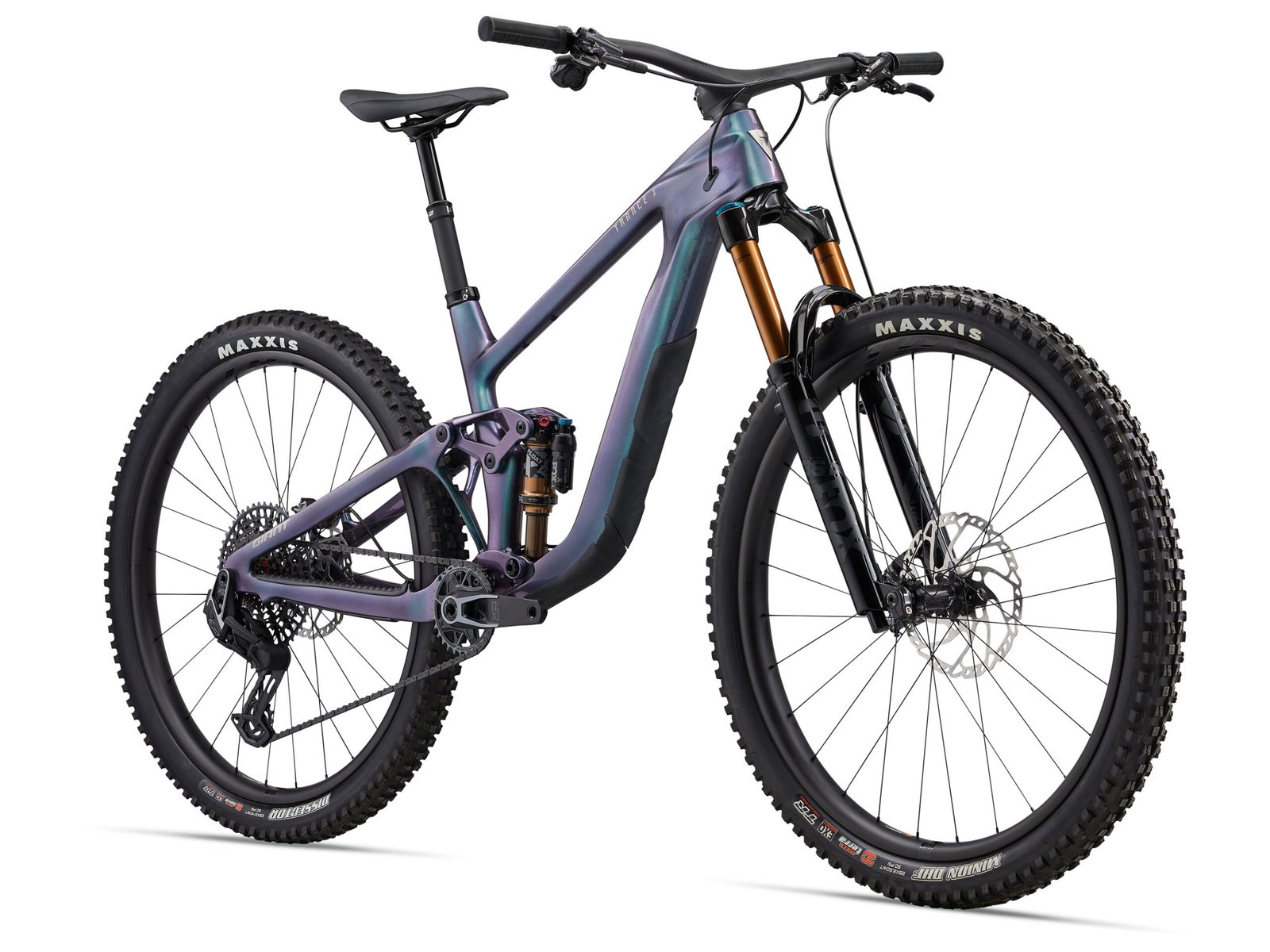

Name: 2025 Giant Trance X Advanced 0
Brand: Giant
SKU: 29483
Availability: InStock

2025 Giant Trance X Advanced 0

$4,150.00

A new Advanced-grade composite frameset with Maestro suspension offers 5mm added travel compared to the previous generation, going from 135mm to 140mm. The rear suspension is paired with a 150mm fork. The frame is equipped with two, three-position flip chips for the ultimate in versatility and adjustability. The rear flip chip, located on the Maestro rocker arm, lets you adjust frame geometry and fine-tune handling for riding style and terrain. A second flip chip at the headset makes it easy to change the reach, offering 10mm (-5mm, 0mm or +5mm) of adjustment without having to swap your stem. Also new is an integrated down tube storage compartment to carry trail-riding essentials.

Key Performance Features

More Suspension Travel

The updated Maestro rear suspension system now offers 140mm of travel, an increase of 5mm compared to the previous generation. This improvement provides better control and comfort on rough trails. A trunnion-mounted rear shock combined with an Advanced Forged Composite rocker arm delivers a longer stroke and a smoother, more responsive suspension feel. Paired with a 150mm front suspension fork, the system gives riders greater confidence and stability when tackling technical singletrack and challenging terrain.

Adjustable Trail Geometry

A three-position Maestro flip chip allows you to easily adjust the bike’s geometry to match your riding style and the terrain you’re riding on.

High setting: Raises the bottom bracket for more ground clearance, making it ideal for tight, technical trails.
Low setting: Creates a slacker head angle and lower bottom bracket, providing better stability and control at higher speeds.
Middle setting: Offers a balanced, neutral setup for everyday trail riding.

In addition, a headset flip chip allows for 10mm of reach adjustment, giving riders even more flexibility to fine-tune the bike’s fit and handling.

Rear Wheel Options

While all models come equipped with 29-inch front and rear wheels, the flip chip also allows riders to switch to a mixed-wheel setup with a 27.5-inch rear wheel.

The standard 29-inch setup delivers excellent stability and improved rollover capability on rough terrain. Switching to a 27.5-inch rear wheel provides a quicker, more playful ride feel along with increased saddle-to-tire clearance. Many riders prefer this “mullet setup” when riding steep or highly technical trails.

Seat Tube Length (inch)	15.7	16.7	17.7	18.7
A1 Seat Post Insertion Depth (inch)	11	12	13	14
B Seat Tube Angle	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°
C Top Tube Length (inch)	22.5 \| 22.4 \| 22.4	23.7 \| 23.7 \| 23.6	24.6 \| 24.5 \| 24.5	25.9 \| 25.8 \| 25.8
D Head Tube Length (inch)	3.9	4.1	4.5	4.9
E Head Tube Angle	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°
F Fork Rake (inch)	1.7	1.7	1.7	1.7
G Trail (inch)	5.3 \| 5.2 \| 5	5.3 \| 5.2 \| 5	5.2 \| 5.2 \| 5	5.2 \| 5.2 \| 5
H Wheelbase (inch)	46.9 \| 46.9 \| 46.8	48.1 \| 48.1 \| 48.1	49.1 \| 49.1 \| 49	50.4 \| 50.4 \| 50.4
I Chain Stay Length (inch)	17.3 \| 17.3 \| 17.2	17.3 \| 17.3 \| 17.2	17.3 \| 17.3 \| 17.2	17.3 \| 17.3 \| 17.2
J Bottom Bracket Drop (inch)	1.6 \| 1.4 \| 1.2	1.6 \| 1.4 \| 1.2	1.6 \| 1.4 \| 1.2	1.6 \| 1.4 \| 1.2
K Stack (inch)	24.3 \| 24.2 \| 24.1	24.4 \| 24.4 \| 24.3	24.8 \| 24.7 \| 24.6	25.2 \| 25.1 \| 25
L Reach (inch)	16.8 \| 16.9 \| 17.1	18 \| 18.1 \| 18.3	18.7 \| 18.9 \| 19.1	20 \| 20.1 \| 20.2
M Stand Over Height (inch)	28.9 \| 29 \| 29.2	29 \| 29.2 \| 29.4	29.7 \| 29.9 \| 30	29.6 \| 29.8 \| 30
N Handlebar Width (inch)	31.5	31.5	31.5	31.5
O Stem Length (inch)	1.6	1.6	2	2
P Crank Length (inch)	6.5	6.7	6.7	6.7
Q Wheel Size	[F] 29″ [R	[F] 29″ [R	[F] 29″ [R	[F] 29″ [R

Specs

Sizes

Select Sizes Available: M, L
Colors

Blue Dragonfly/Chrome
Frame

Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip – Maestro 3, flip chip – headset, integrated down tube storage and under-top tube storage mounts
Fork

Fox 36 Factory, 150mm, GRIP 2 damper, 15×110 Kabolt X, 44mm offset
Shock

Fox Float X Factory, two-position LSC adjust, 185/52.5, custom tuned for Giant
Handlebar

Giant Contact SLR Trail Integrated, composite, 800x35mm, 20mm rise
Grips

Giant Tactal Pro Single Lock-On, 132x35mm
Stem

Giant Contact Integrated SLR Trail S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost

Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle

Giant Romero SL
Pedals

N/A
Shifters

SRAM AXS Pod, 1×12
Front Derailleur

N/A
Rear Derailleur

SRAM XO Eagle AXS, T-Type
Brakes

Shimano Deore XT BR-M8120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers

Shimano Deore XT BL-M8100
Cassette

SRAM XO, T-Type, 10×52
Chain

SRAM XO, T-Type
Crankset

SRAM XO, T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket

SRAM DUB, press fit
Rims

Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology
Hubs

Giant TRX 0 29 Carbon WheelSystem
Spokes

Sapim, 28, straight pull, DBL Technology
Tires

[F] Maxxis Minion DHF, 29×2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29×2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
Extras

tubeless prepared, 2.5″ max tire size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Color

Blue Dragonfly

Chrome
